Brand Name: F&C
Model Number: FSNA10-N
Place of Origin: Hunan, China (Mainland)

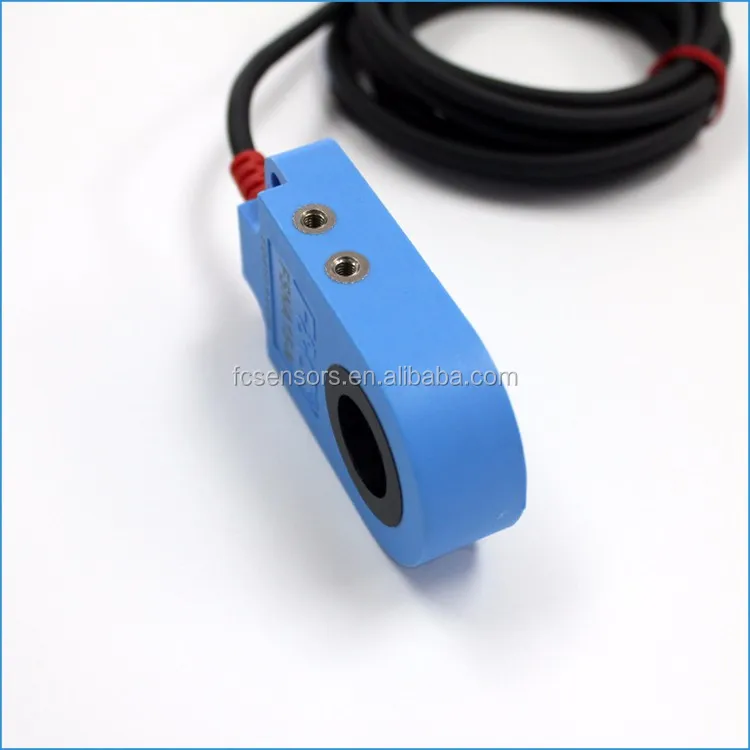

FSNA series metal counter, counting sensor with CE
Feature
*Diameter:10mm
*PNP NO 3 wire (12-24VDC+/-10%)
*IP67
*Connection Method:Pre-wired 2m cable, pre-wired 150mm cable and M8 connector
| NPN NO | FSNA03-N | FSNA06-N | FSNA10-N | FSNA15-N | FSNA21-N |
| NPN NC | FSNA03-N2 | FSNA06-N2 | FSNA10-N2 | FSNA15-N2 | FSNA21-N2 |
| PNP NO | FSNA03-P | FSNA06-P | FSNA10-P | FSNA15-P | FSNA21-P |
| PNP NC | FSNA03-P2 | FSNA06-P2 | FSNA10-P2 | FSNA15-P2 | FSNA21-P2 |
| Ring diameter | 3mm | 6mm | 10mm | 15mm | 21mm |
| Standard Detection Object | Dia1*2mm | Dia2.5*2mm | Dia3*2mm | Dia4*3mm | Dia5*6mm |
| Response Frequency | 1000HZ | ||||
| Operating Voltage | 10-30V DC | ||||
| Protection circuit | Reverse circuit protection short circuit protection | ||||
| Operating Temperature | -25~70℃ | ||||
| Protection Degree | IP67(can customize IP68) | ||||
| Material | PBT | ||||
| Wire Method | dia 4×2M/3 wires | ||||
| EMC | 200-280mA | ||||
| 150mm Lead line with M8 connector and M8 connector type can be tailored | |||||
Product Display
1.Prompt reply to our customer, we have to reply all the email within 24hrs.
2.18 month quality warranty, provide free replacement if there is any quality problem with our product.
3. Most economical shipping method will be choose to save the freight for our customer.
4. Accept OEM Order, Ship product with your logo.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology originated from Taiwan is a professional sensor manufacturer with 23 years experience in sensor field.Our factory has a rich experience engineer team and owns over 30 patents. Our products cover 14 series and 5000 specification.
main product :fiiber optic amplifier, fiber optic sensor, fiber opic lens, proximity sensor, photoelectric sensor,
laser sensor,laser displacement sensor, color mark sensor,Label Sensor, Light Curtain, Laser projector, pressure switch, magnetic sensor, female connector, din-rail power supply, solid state relay.
F&C Technology has been making continuous breakthrough in new technology and new material application.
We hope we can provide one-stop service for your customer and extend our product line, then all you need can be shipped from F&C Sensing Technology.
