Brand Name: LYTTE, OEM, ODM
Model Number: D Series
Place of Origin: Shanghai, China (Mainland)
Type: Evaporator
Application: Refrigeration Parts, Refrigeration Parts
Certification: CE
Condition: New
Temperature: L:-5℃~5℃ | D:-15℃~-20℃ | J:Below -25℃
Voltage: 380V, 220V,110V
Cooling Capacity: 2.2KW-120KW
Coil: Copper Tube with Aluminium Fin
Fan Diameter: 310-630mm
Fan Quantity: 1-4
Deforsting Heater: Yes
Refrigerant: R22, R134a, R410a, R407c etc

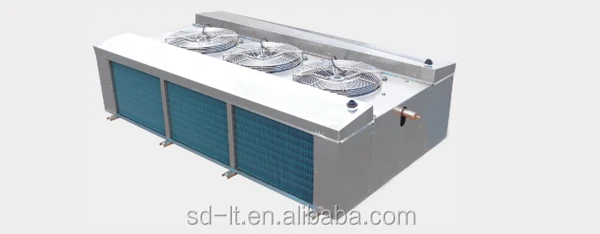

D Series High Efficiency Air Evaporator Cooler,

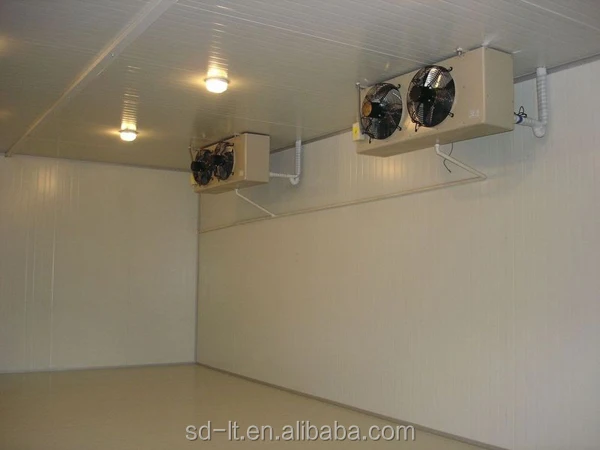

Air Evaporator Cooler for Cold Rooms, Quick Freezing
Features of D Series Air Evaporator Cooler
1.Unit cabinet of steel plate with plastic spray, corrosion proof, and pleasant looking;
2.Mechanically expanded pipes with AL fins with good heat transfer performance;
3..Inside are evenly arranged with deforsting heaters;
4.The bottom has double water receiver,effective for anti-freezing;
5.Long distance air throw is optional.
Models Specification of D Series Air Evaporator Cooler
D L 19/45 3 A
D--Products Series Code
L--Temperature(L:-5°C~5°C;D:-15°C~-20°C;J:Below -25°C) 19--Nominal heat exchange
45--Fan Diameter
3--Fan Quantity
A--A:380V/3P/50HZ;B:220V/1P/50HZ;C:220V/3P/60HZ;D:220V/1P/60HZ;
E:110V/1P/60HZ(D,E Fan Diameter≤500mm)

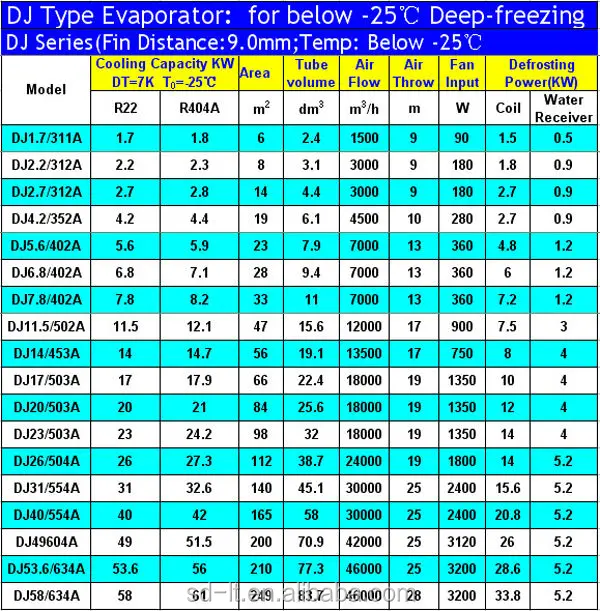

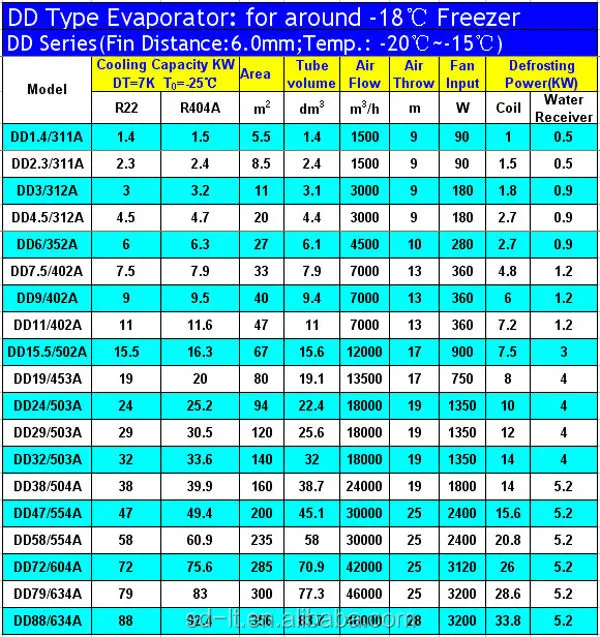

Technical Data of D Series Air Evaporator Cooler

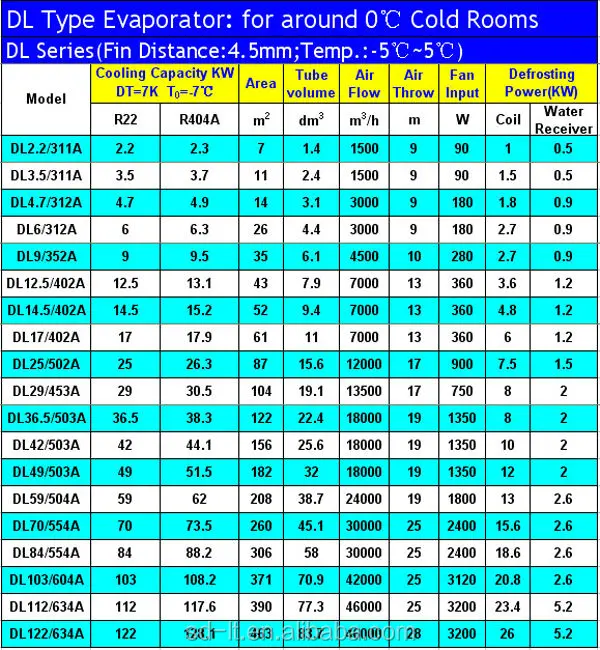

DL Type Air Evaporator Cooler
DL Type Air Evaporator Cooler
DL Type Air Evaporator Cooler

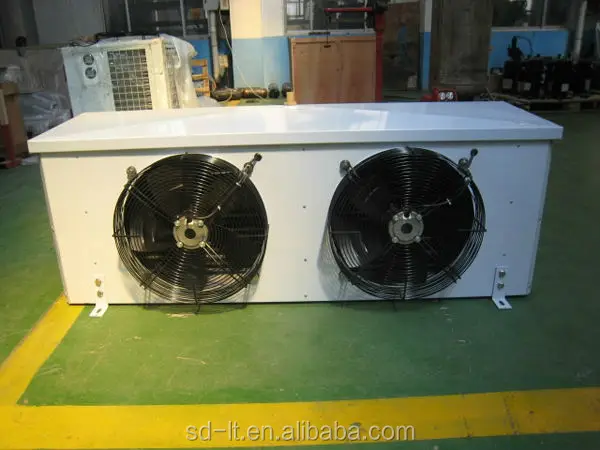

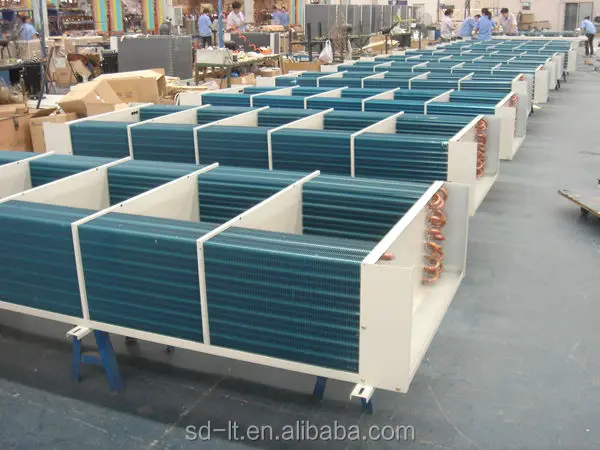

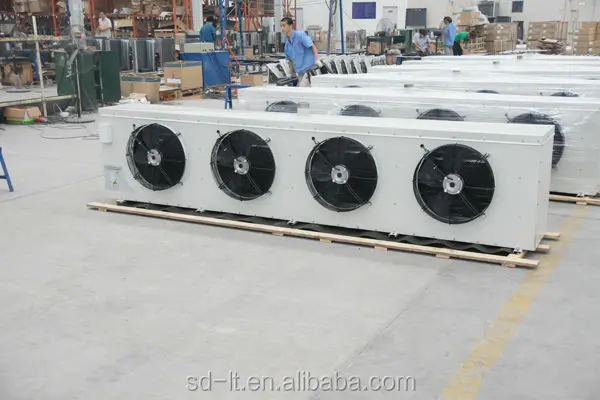

Products of Air Evaporator Cooler
Certificates
